General Description
The YY-MDB-V2 is a digital infrared thermopile sensor that facilitates the non-contact temperature
measurement. Housed in a small TO-5 package with digital interface, the sensor integrates thermopile sensor,
amplifier, A/D, DSP, MUX and communication protocol.

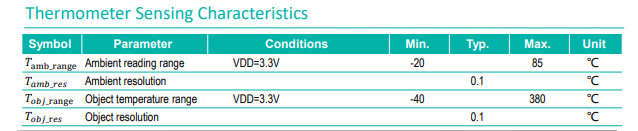

The YY-MDB-V2 is factory calibrated in wide temperature ranges:-20℃~85℃ for the ambient temperature
and -40C~380CWith ±2C(0-100C) or ±2% accuracy for the object temperature. The measured temperature
value is the average temperature of all objects in the Field of View of the sensor.
Features and Benefits
Digital temperature output
Factory calibrated in wide temperature ranges
2-Wire IIC Communication protocol and Easy integration
Reduced system component
Wide Supply Voltage Range
Operating Temperature Range:-20C to +85*CAnd Storage Temperature Range:-40C-105℃

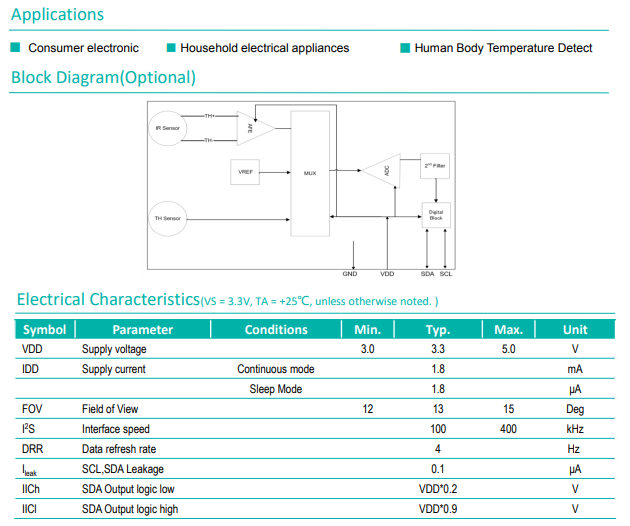

Applications
Consumer electronic
Household electrical appliances

Human Body Temperature Detect
